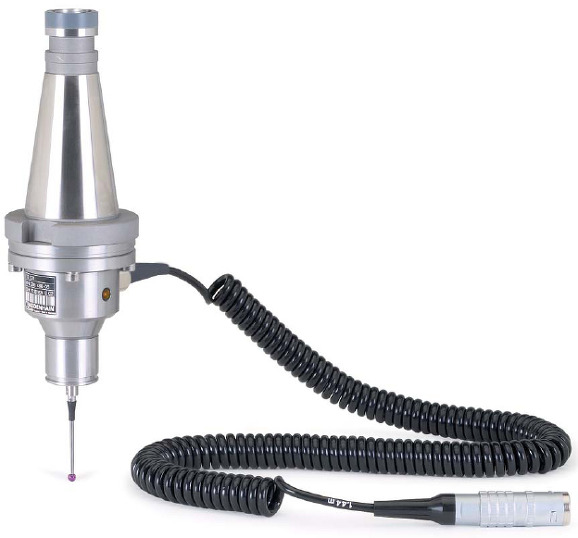

Workpiece touch probe |
TS 220 |
TS 230 |
|
Probe accuracy |
≤ ± 5 µm when using a standard stylus | |
|
Probe repeatability |
2 σ ≤ 1µm at a probing velocity of 1m/min
Typical values:
2 σ ≤ 1µm at a probing velocity of 3m/min
2 σ ≤ 4µm at a probing velocity of 5m/min | |
|
Deflection of probe contact |
≤ 5 mm in all directions (with stylus length L=40mm) | |
|
Deflection of probe contact |
Axial : approx. 8 N
Radial : approx. 1 N | |
|
Probe velocity |
≤ 5m/min
| |
